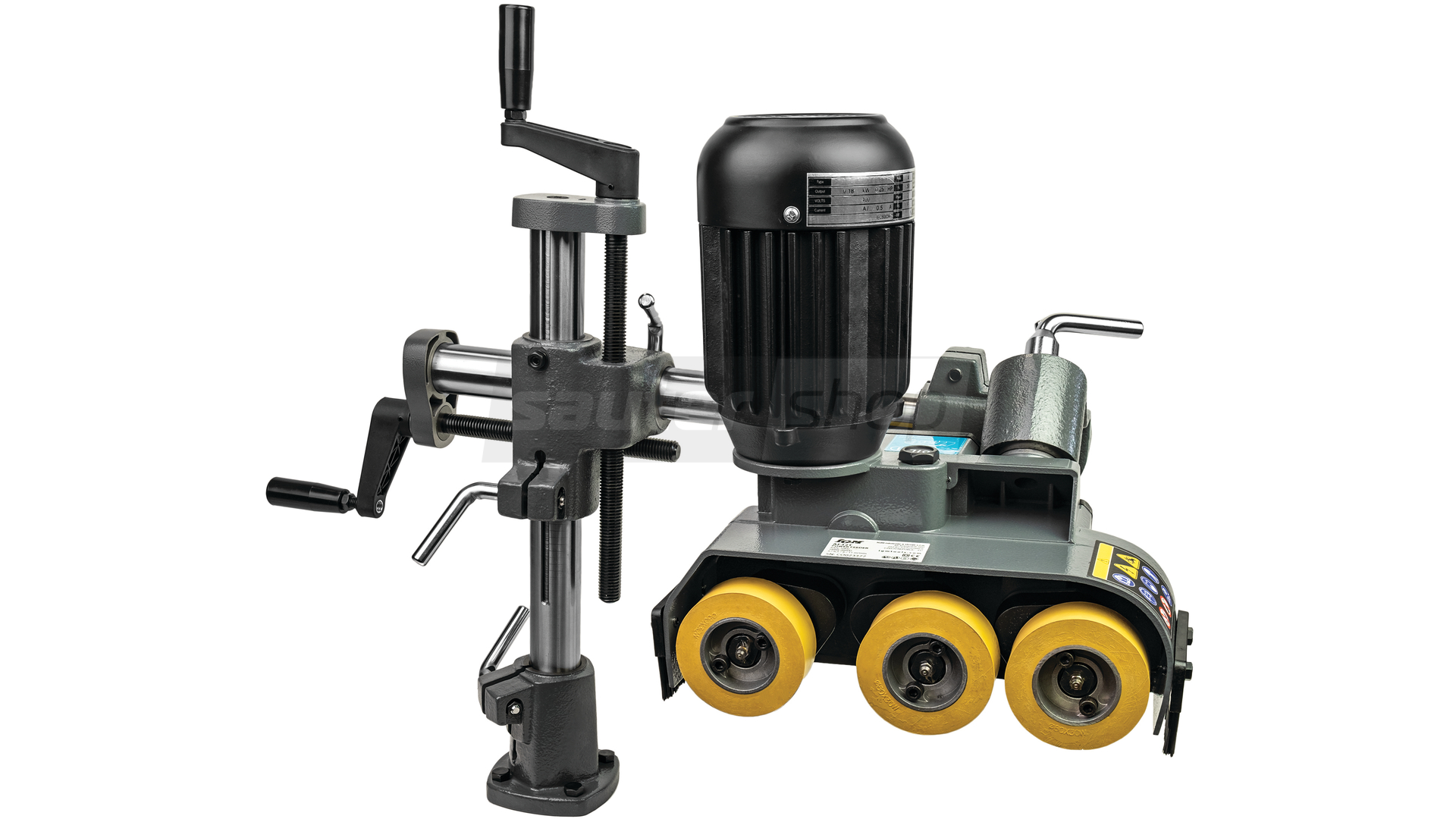

IGM AF32 Power Feeder 400V

IGM AF32 Power Feeder 400V

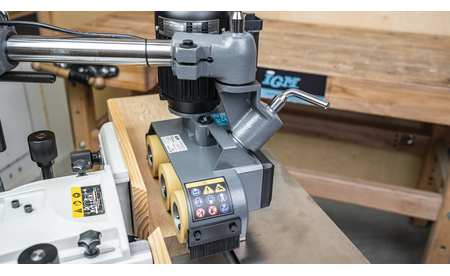

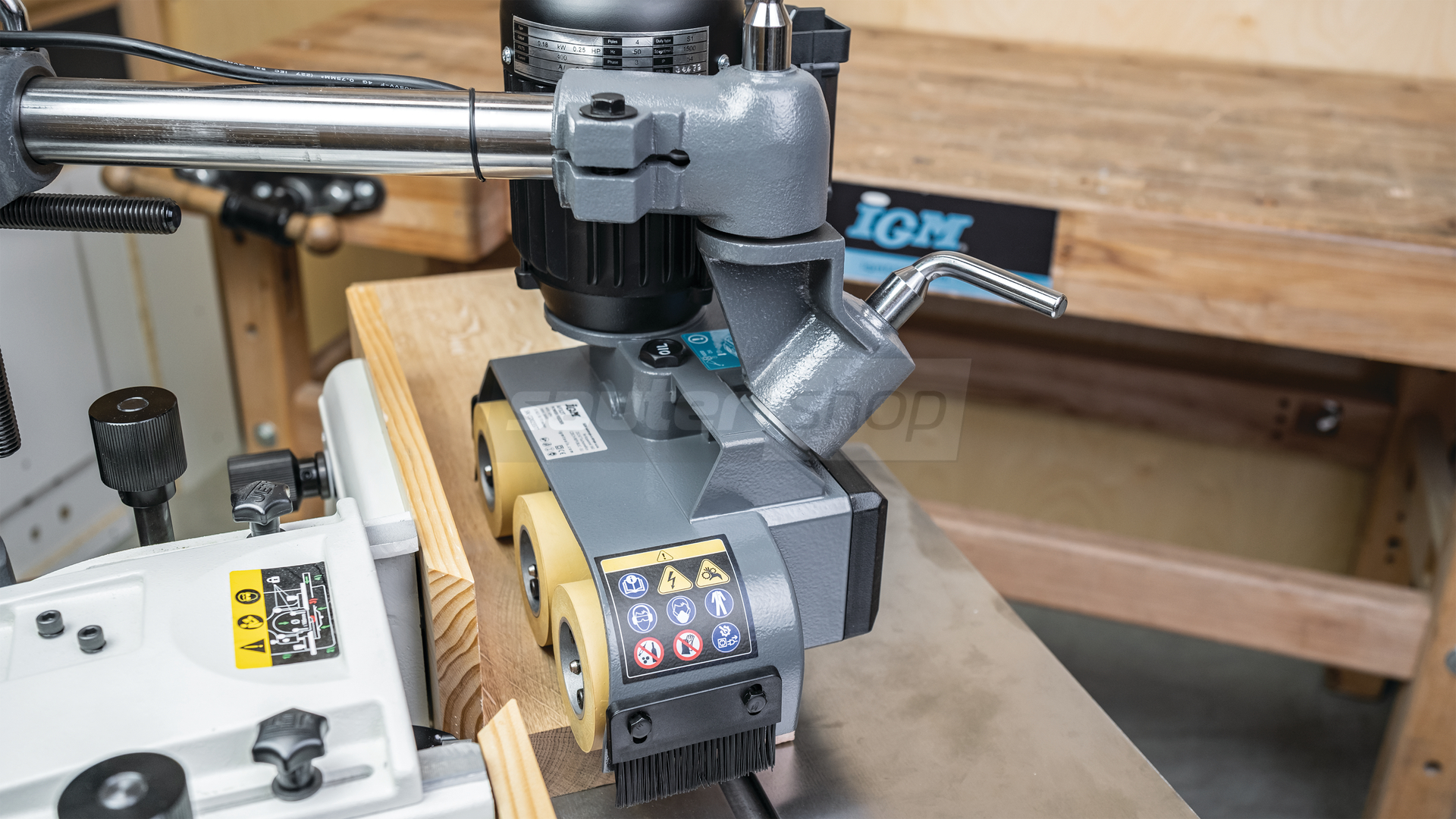

Ideally suited for small to medium-sized router tables, circular table saws and jointers.

Technical Data

• Power (400 V): 240 W
• Reach: 260 mm
• Maximum height: 150mm
• Number of transport rollers: 3
• Dimensions, head: 80 x 30 mm
• Feed speeds: 5 | 6,5 | 8 | 11 m/min
• Weight: 33 kg

Features and advantages

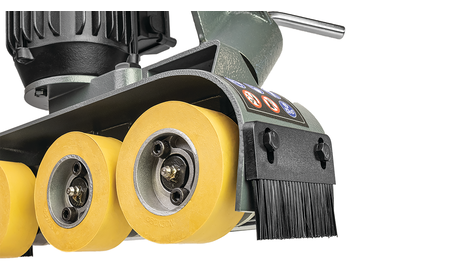

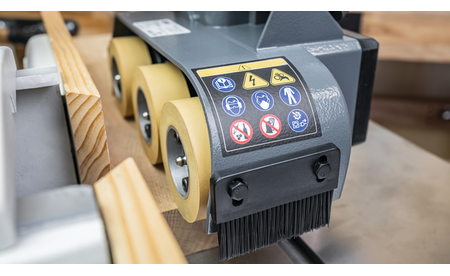

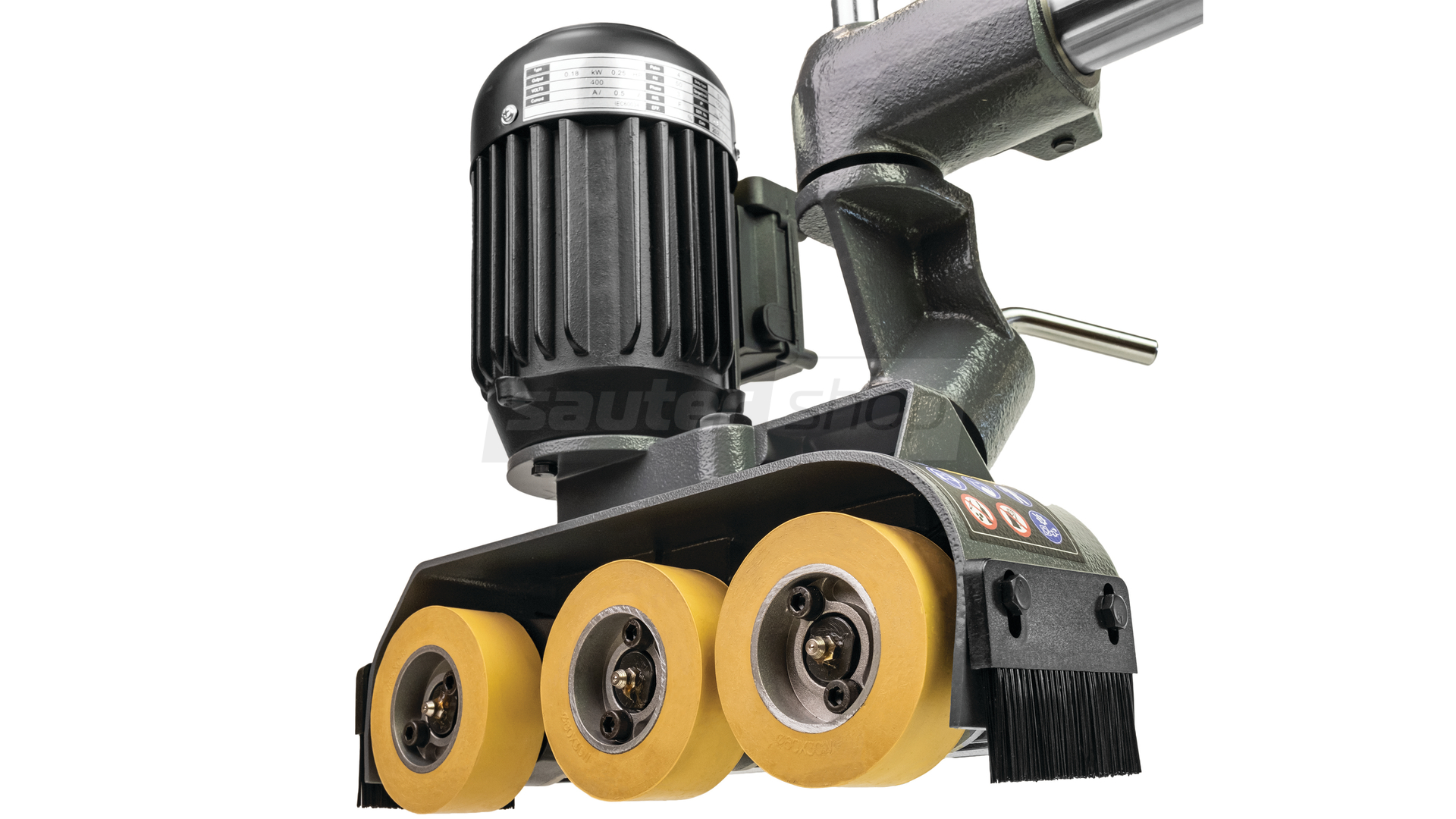

• Feed unit with three spring-mounted rollers that have a good grip and compensate for unevenness.
• Constant feed speed for harmonious cutting patterns.
• Four adjustable speeds for optimum adjustment to the material to be processed.
• Manually switchable thrust reversal for safe interruption of the working step.

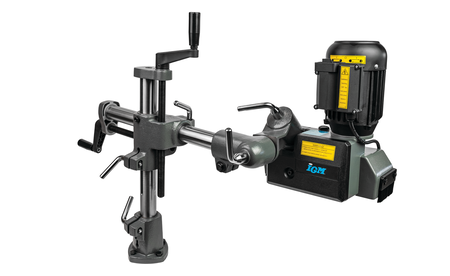

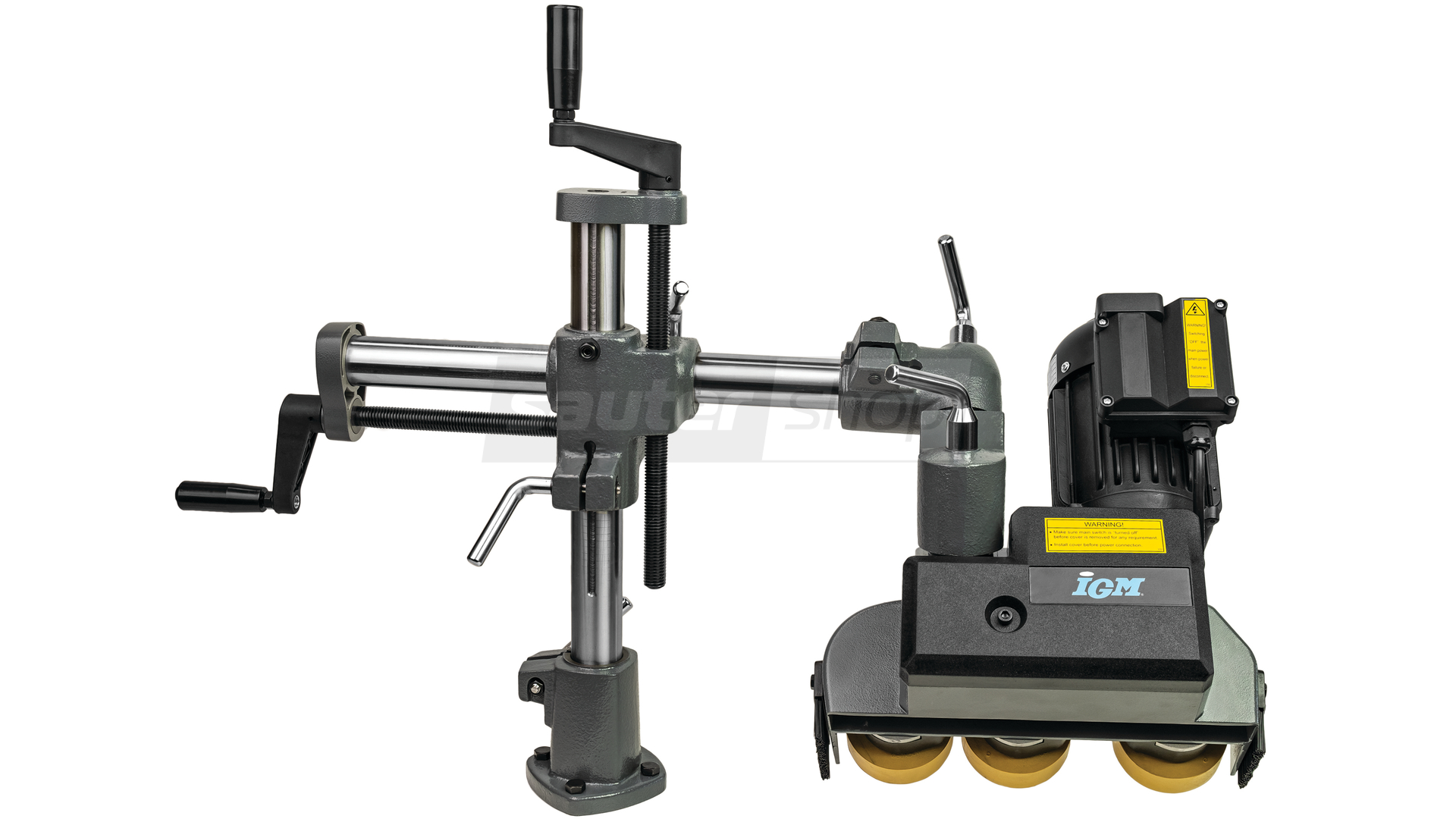

• Height and width of the feed unit are conveniently adjustable via crank spindles.
• Feed head can be swivelled 90° for pressure against the machine table or rip fence.

Scope of delivery

• 1x IGM AF32 Power Feeder 400V
